Mozec NC Rx PTCA Balloon Dilataion Catheter

Meril

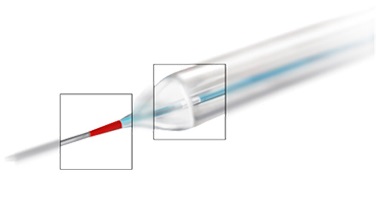

Crossability

Mozec NC is the Rx PTCA non-compliant balloon dilatation catheter from Meril, manufactured in-house from tip-to-hub.

• Low distal tip 0.019" distal stip ensures navigations through tight lesions
• Mozec^TM NC balloons allow competitive crossing ranges.

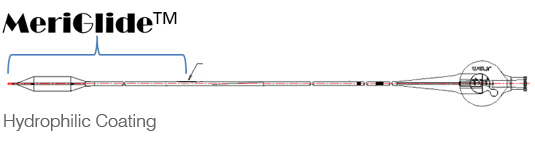

Distal Shaft Coating

MeriGlide^TM - Biocompatible, Hydrophilic, Lubricious Coating distal balloon base up to Rapid Exchange port

less than 4 µm thick. It is non-thrombogenic which resists adsorption of fibrin and platelet adhesion

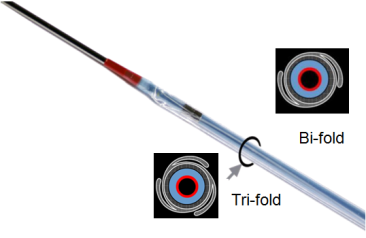

Wrapability

• 2 folds for ø 2.00 mm
• 3 folds for ø 2.25 mm to 4.50 mm
• Folds are in clock-wise direction when seen from the distal tip
• Special balloon material ensures
- Low wrapping profile of folded balloon
• Protective PTFE sheath & SS style.

Inflation / Deflation Time

Best in class deflation time (10 secs) and deflation time (25 secs) for largest configuration 4.50 x 38 mm.

Seamless Single Tube Transition

The distal tubing is a single transparent transitioning tube from the end of hypotube.

This allows for superior force transmission without any loss during navigation

Seamless catheter construction technology allows for exceptionally low tracking forces of 2.06N

Construction which generates high push transfer capability with high push efficiency of 6.55%

MeriStem^TM - Novel Shaft Material increased strength and kink resistance

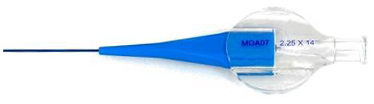

Hub

• Proprietary unique ergonomic design - Meril's "sign-of-life" ECG Bubble
shape, transparent luer hub.

• Etched logos - which allow for slip-free grip.

• Strain relief ensures secure and smooth kink resistant transition towards the
proximal shaft.

• Batch number and Size dimensions are printed on one side.
