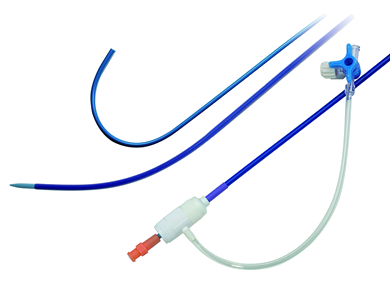

Peripheral > Lifetech Scientific > SteerEase™ Introducer
Outstanding Design
Unique tip deflection technology
Combination of long sheath and guiding catheter
Outstanding tip deflection technology:0-160°
Precise Super Select Catheterization
Save surgery time by avoiding repetitive catheter sizing selection
Minimize vessel injury by avoiding repetitive catheterization procedures
Convenient for Usage
Quickly and easily access target using only one device

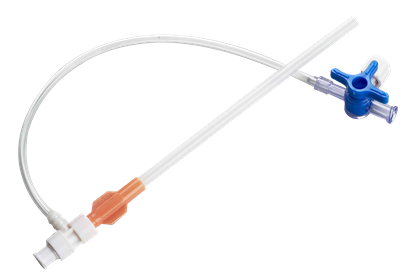

Short sheath + guiding catheter

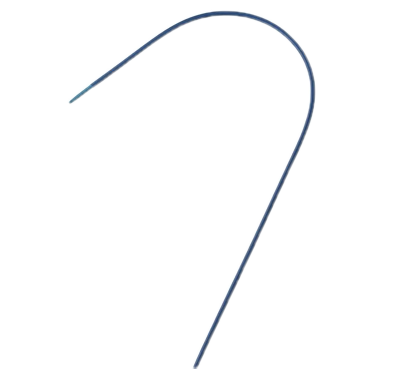

Pre-shaped selective catheter + exchange operation + long sheath
Non-Invasive Position
Smooth transition between dilator and sheath
Avoid injury to vessel wall and vascular opening
Minimize risk of plaque obstruction during the advancement
Stable Support
Enhanced proximal segment
Ensure stable supporting for subsequent operations of device after access is established
Multiple Applications with only One Sheath
Specifications: 5F, 6F, 7F, 8F, 9F, 10F, 12F, 14F
Lengths Available: 550mm, 700mm, 800mm,900mm
Deflectable Lengths: 30mm, 50mm
Connector Type: Hemostasis valve
Suitable for a variety of interventional procedures, including structural heart disease, coronary artery disease, neurovascular, peripheral vascular disease and etc.
SteerEaseTM for CeraFlexTM ASD & PFO Occluder
|
Code |
Sheath ID (mm) |
Sheath OD (mm) |
Sheath Length (mm) |
|
SFA5F-f |
1.79 |
2.23 |
800 |
|
SFA6F-f |
2.13 |
2.57 |
800 |
|
SFA7F-f |
2.46 |
2.9 |
800 |
|
SFA8F-f |
2.79 |
3.23 |
800 |
|
SFA9F-f |
3.13 |
3.59 |
800 |
|
SFA10F-f |
3.46 |
3.94 |
800 |
|
SFA12F-f |
4.13 |
4.63 |
800 |
|
SFA14F-f |
4.79 |
5.29 |
800 |
SteerEaseTM for CeraFlexTM VSD & PDA Occluder
|
Code |
Sheath ID (mm) |
Sheath OD (mm) |
Sheath Length (mm) |
|
SFP5F-f |
1.79 |
2.23 |
800 |
|
SFP6F-f |
2.13 |
2.57 |
800 |
|
SFP7F-f |
2.46 |
2.9 |
800 |
|
SFP8F-f |
2.79 |
3.23 |
800 |
|
SFP9F-f |
3.13 |
3.59 |
800 |
|
SFP10F-f |
3.46 |
3.94 |
800 |
|
SFP12F-f |
4.13 |
4.63 |
800 |
|
SFP14F-f |
4.79 |
5.29 |
800 |
SteerEaseTM for CeraTM /HeartRTM ASD & PFO Occluder
|
Code |
Sheath ID (mm) |
Sheath OD (mm) |
Sheath Length (mm) |
|
SFA5F |
1.79 |
2.23 |
800 |
|
SFA6F |
2.13 |
2.57 |
800 |
|
SFA7F |
2.46 |
2.9 |
800 |
|
SFA8F |
2.79 |
3.23 |
800 |
|
SFA9F |
3.13 |
3.59 |
800 |
|
SFA10F |
3.46 |
3.94 |
800 |
|
SFA12F |
4.13 |
4.63 |
800 |
|
SFA14F |
4.79 |
5.29 |
800 |
SteerEaseTM for CeraTM /HeartRTM VSD & PDA Occluder
|
Code |
Sheath ID (mm) |
Sheath OD (mm) |
Sheath Length (mm) |
|
SFP5F |
1.79 |
2.23 |
800 |
|
SFP6F |
2.13 |
2.57 |
800 |
|
SFP7F |
2.46 |
2.9 |
800 |
|
SFP8F |
2.79 |
3.23 |
800 |
|
SFP9F |
3.13 |
3.59 |
800 |
|
SFP10F |
3.46 |
3.94 |
800 |
|
SFP12F |
4.13 |
4.63 |
800 |
|
SFP14F |
4.79 |
5.29 |
800 |
