Pediatric Cardiology > Lifetech Scientific > AcuMark™ Sizing Balloon

AcuMark™ Sizing Balloon

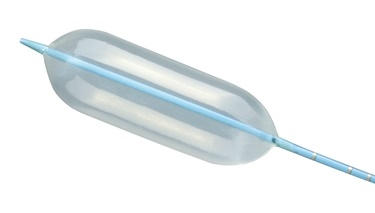

The AcuMark™ Sizing Balloon (Lifetech) is a double-lumen catheter which is designed to measure cardiovascular defects such as an ASD.

Positioning message

• Soft compliance material

• Easy to use

• Precise measurement

• Option for different size

• The balloon is made of soft compliance TPU (Thermoplastic Polyurethane) plastic membrane.

-Minimize invasive of defect

-Suitable for sizing

• Easy to use

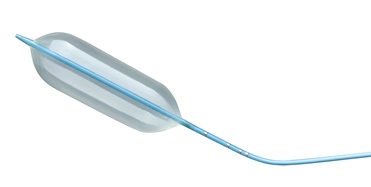

-The balloon-carrying segment is angled 45° to the shaft

-Providing a right-angled position in relation to the atrial septum.

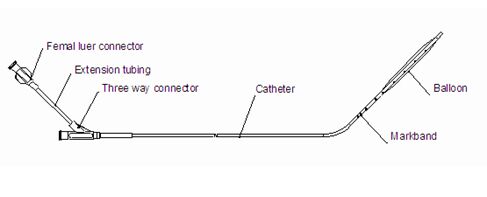

-Double-lumen catheter

• Precise measurement

Four radiopaque markbands at 10 mm, 5 mm and 2mm intervals (as measured from leading edge to leading edge) are used as a distance reference for magnification correction.

• Option for different size- 3 codes cover all kind of defect size

-Up to 18mm

-Up t0 28mm





AcuMarkTM Sizing Ballnoon

Code

Balloon Length (mm)

Maximum Defect Size (mm)

Shaft Size (Fr.)

Shaft Usable Length (mm)

Guide wire (inches)

Maximum Inflation Volume (cc)

LT-SZB-24

40

18

7F

750

0.035

25

LT-SZB-34

40

28

7F

750

0.035

55

LT-SZB-44

26

44

7F

750

0.035

60
